Monitoring Service Through Monitoring Feature Guide
This article provides guidance on how to monitor the status and resource usage of the VPN Site-to-Site service on FPT Smart Cloud.

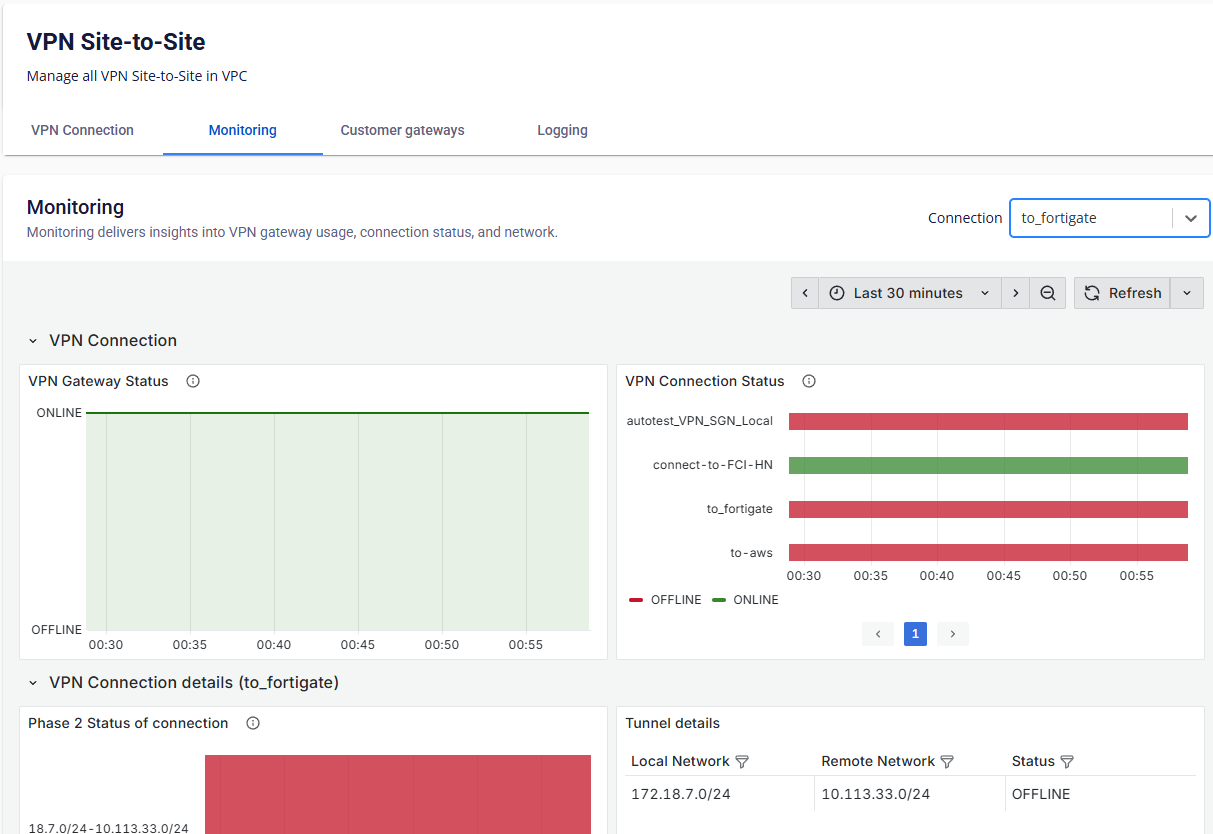

Step 1: On the display screen, select the Monitoring tab from the horizontal menu bar.

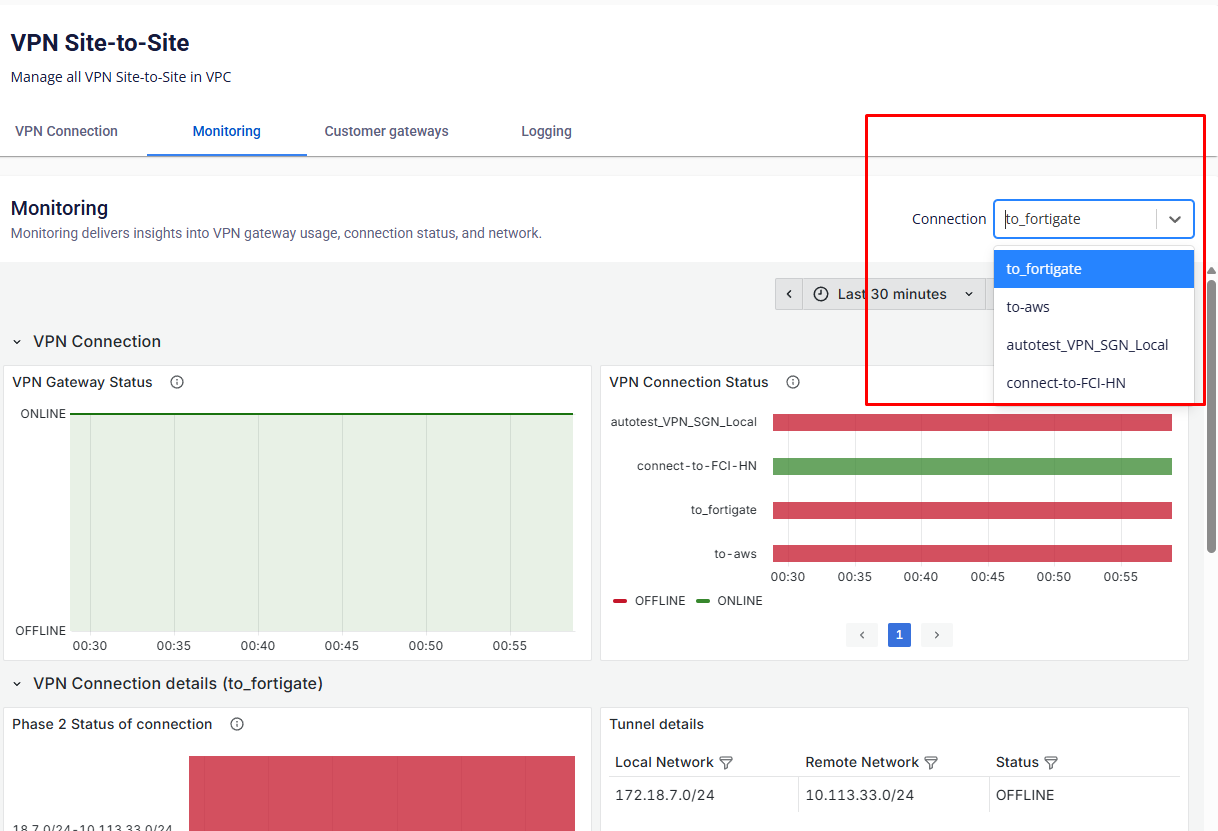

Step 2: You can monitor Phase 2 of a specific VPN connection by using the Filter option under the Connection section.

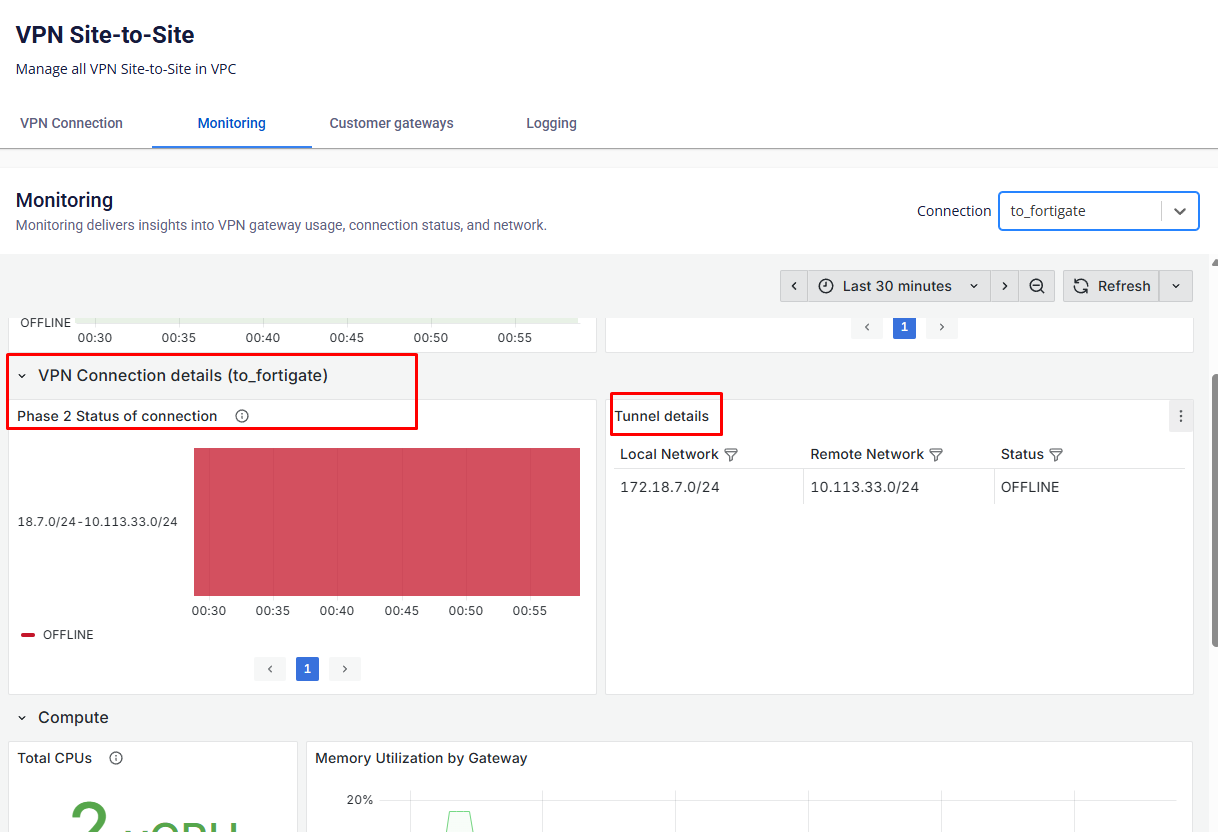

You can view the Phase 2 status of the service, which includes the following information:
VPN connection details
| Field name | Description |
|---|---|
| Phase 2 Status of connection | Displays the status of the IPSec tunnel (Phase 2). |
| You can filter the values for Local network / Remote network / Status by clicking the filter icon. | |
| Field name | Description |
| --- | --- |
| Local Network | Local network subnet range. |
| Remote Network | Remote network subnet range. |
| Status | Current status of the tunnel. |
