Vpn Site To Site Configuration With Palo Alto Guide

You must ensure the following conditions are met:

The VPN Site-to-Site service is set up on the FPT Cloud Portal.
A Palo Alto firewall is installed and enabled on the customer's side.
The Palo Alto firewall has been configured with three IP addresses: Management (Public IP) - WAN (Public IP) - LAN.

Step 1: Configure VPN Site-to-Site

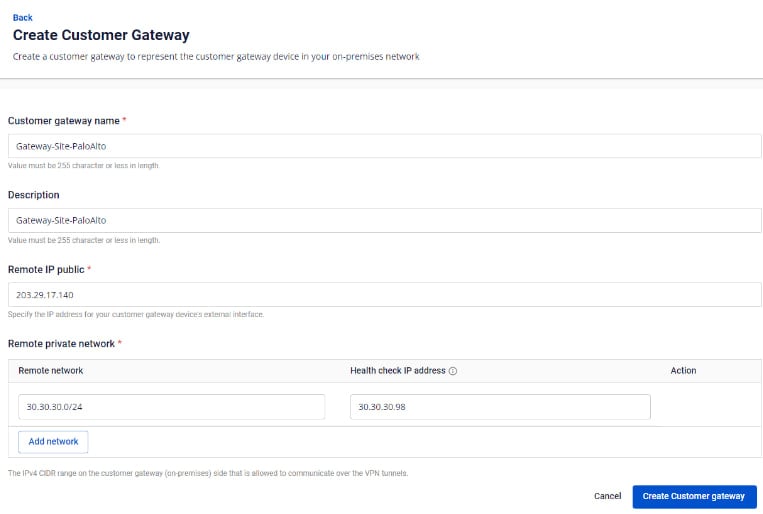

Access and create the VPN Site-to-Site on https://console.fptcloud.com/ -Create a Customer Gateway:

Remote private network: LAN subnet range for peering with Palo Alto
Remote IP public: Public IP address of Palo Alto

-Create a VPN Connection: A VPN connection includes three main sections:

General Information (contains general connection details)
Remote VPN Information (contains encryption and customer-side information)
Dead Peer Detection (number of automatic retries if the connection encounters issues)

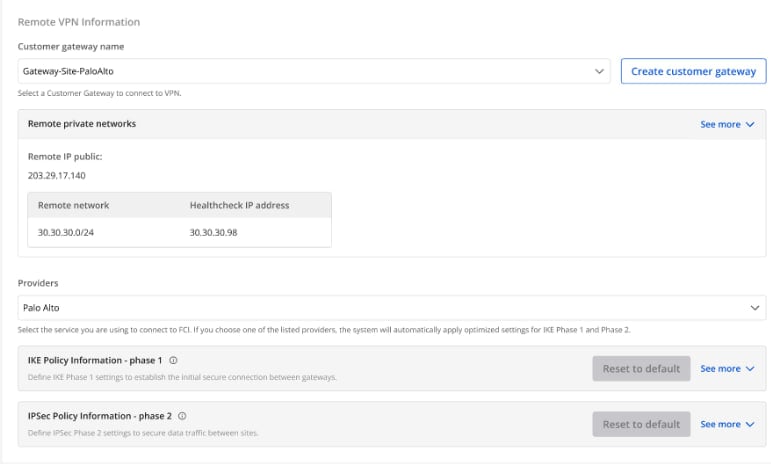

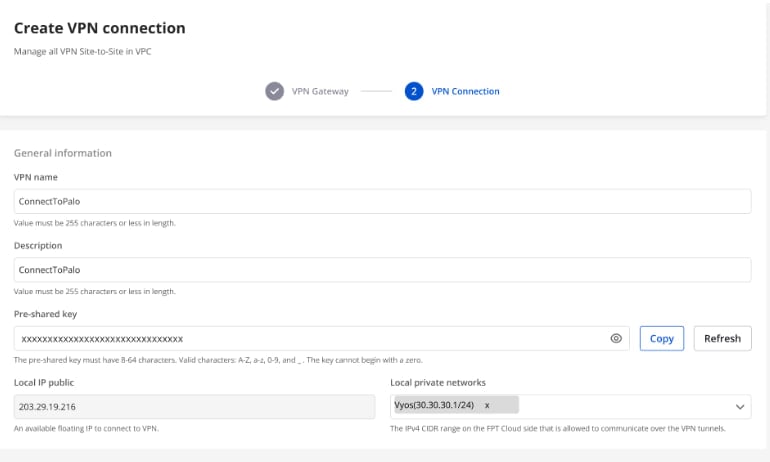

Section 1: General Information Note: The Pre-shared key value should be saved for configuration on Palo Alto. Section 2: Remote VPN Information When selecting the provider “Palo Alto,” the system automatically fills in the IKE and IPsec information as follows: For IKE:

Encryption algorithm: aes-256
Authorization algorithm: sha256
IKE version: ikev2
Lifetime units: seconds
Lifetime value: 28800
DH Group: GROUP_14
Phase 1 negotiation mode: main

For IPsec:

Encapsulation mode: tunnel
Encryption algorithm: aes-256
Authorization algorithm: sha256
Lifetime units: seconds
Lifetime value: 3600
Perfect forward secrecy (PFS): GROUP_14
Transform protocol: esp

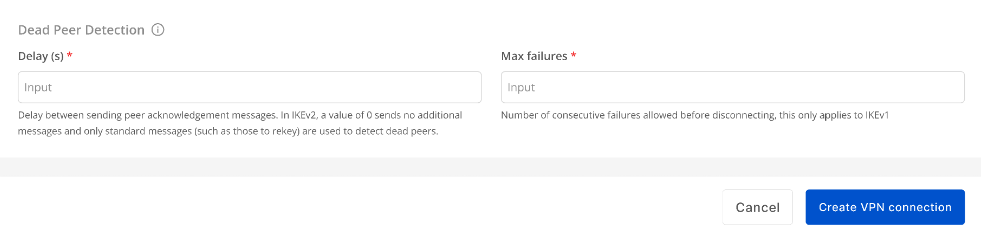

Section 3: Dead Peer Detection Enter the Delay and Max failure values, then click Create VPN Connection.

Step 2: Configure IPsec on Palo Alto

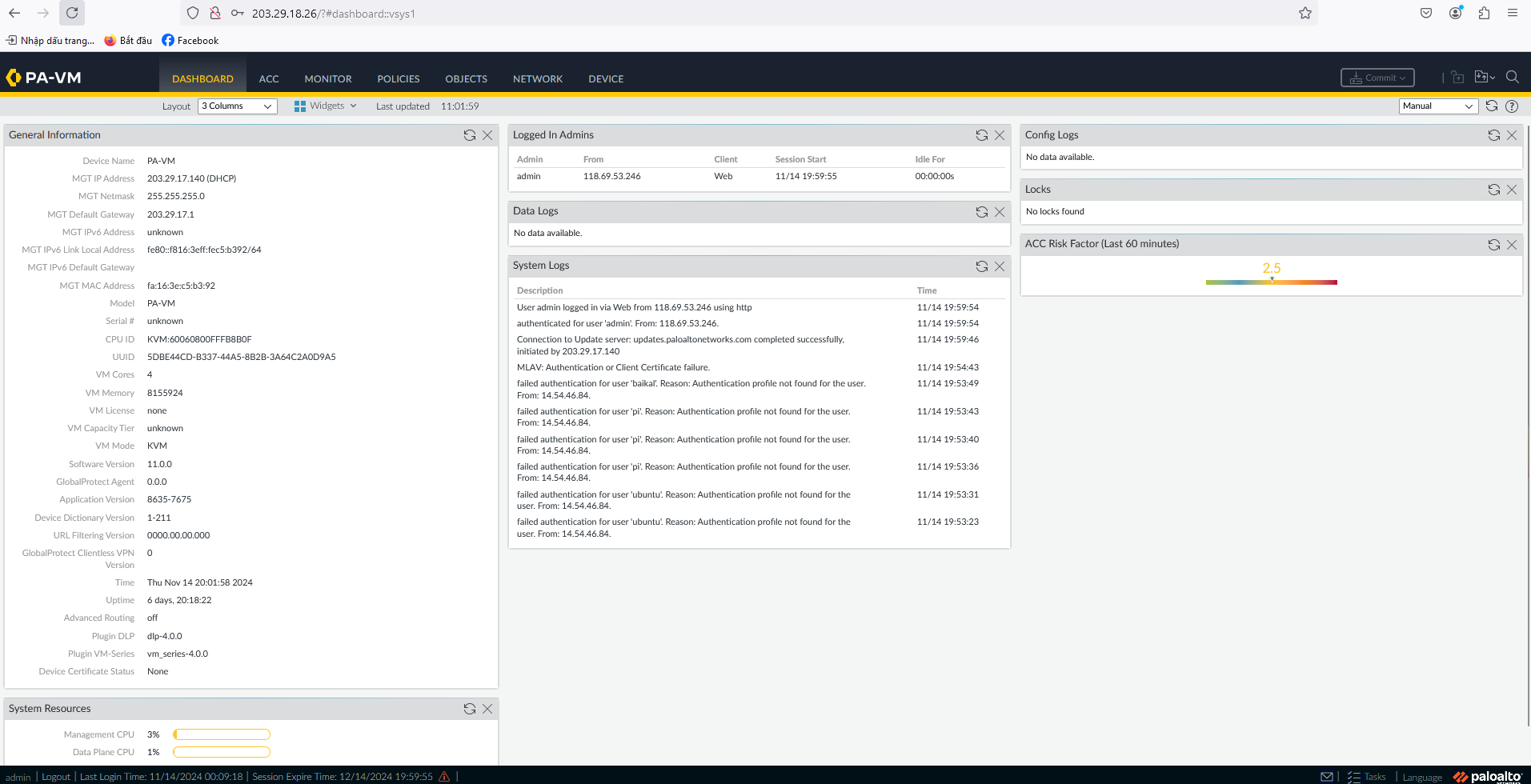

Log in to Palo Alto via the Management IP:

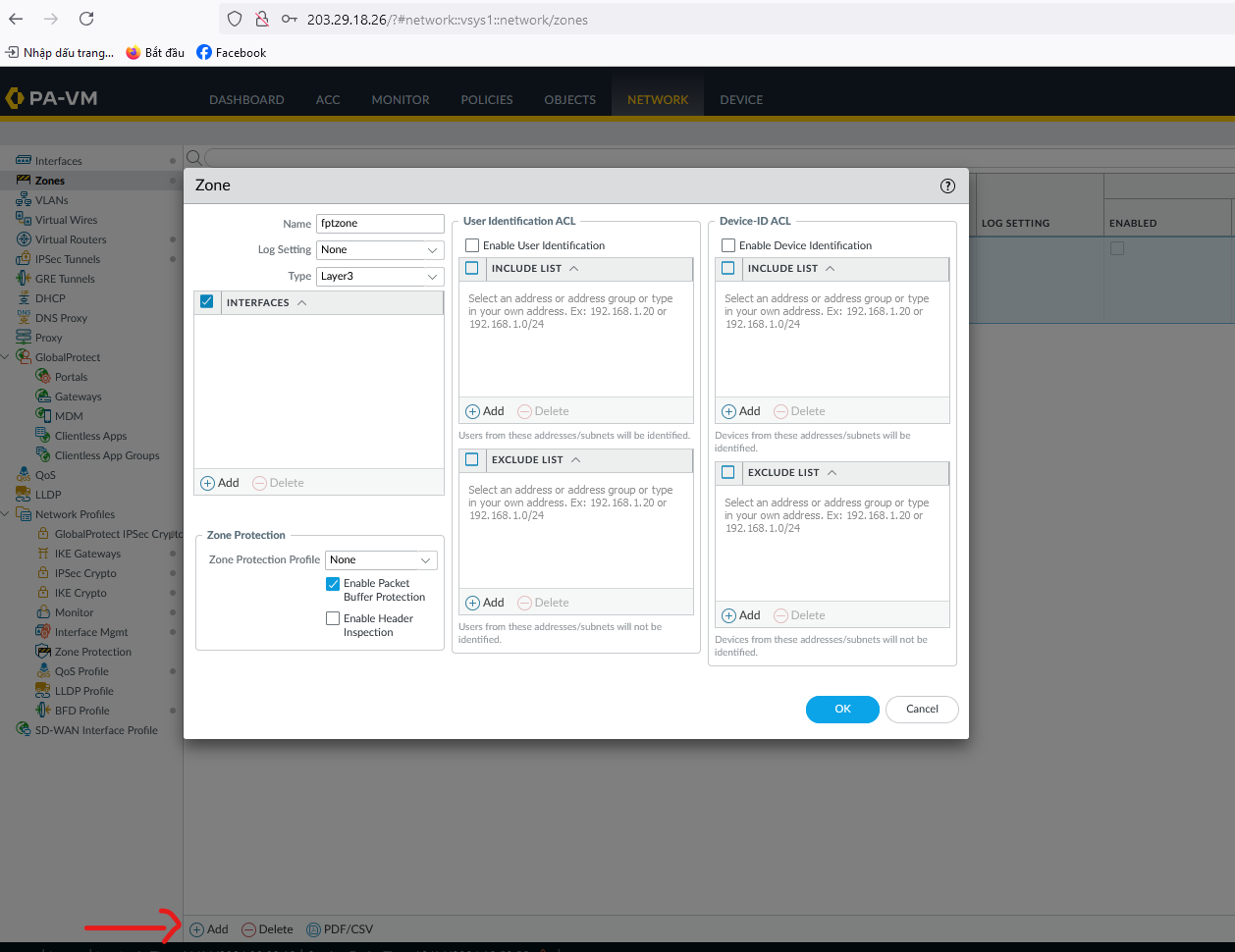

Click Add and activate the Palo Alto Zone.

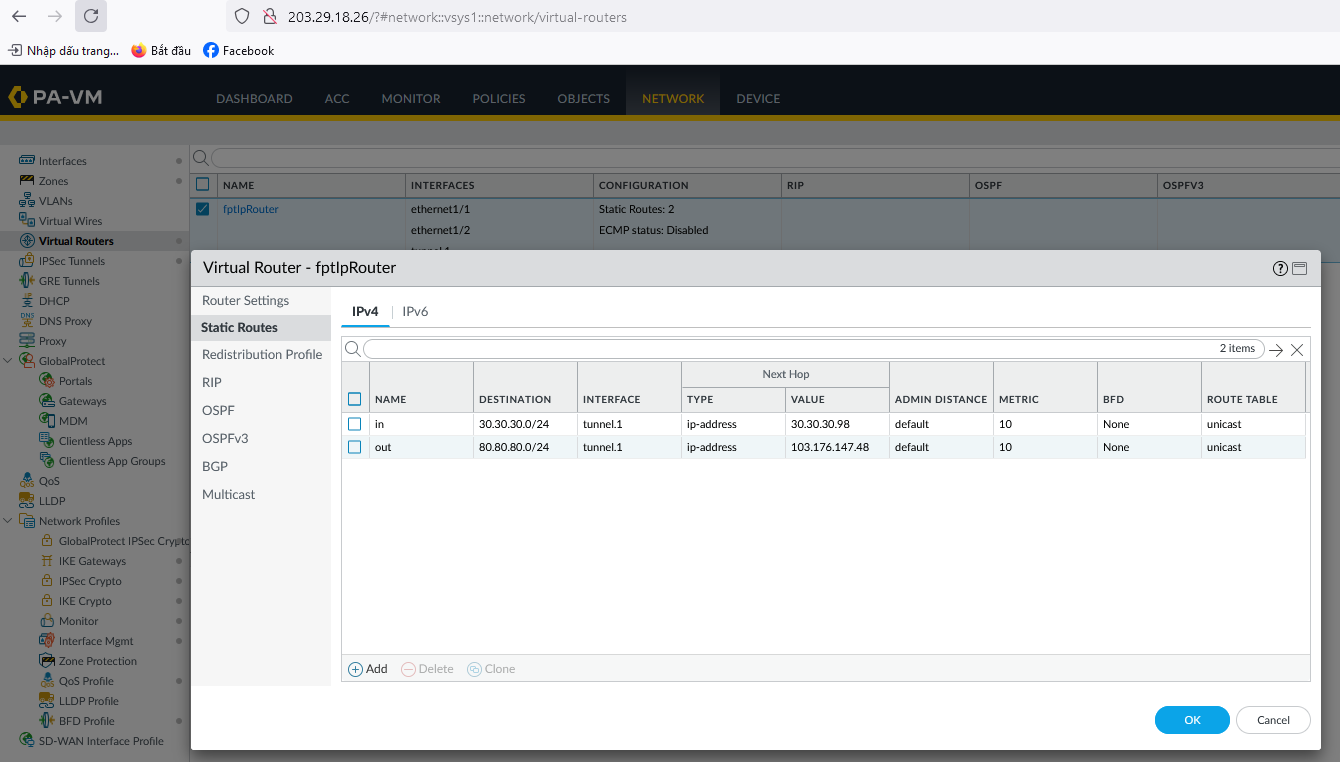

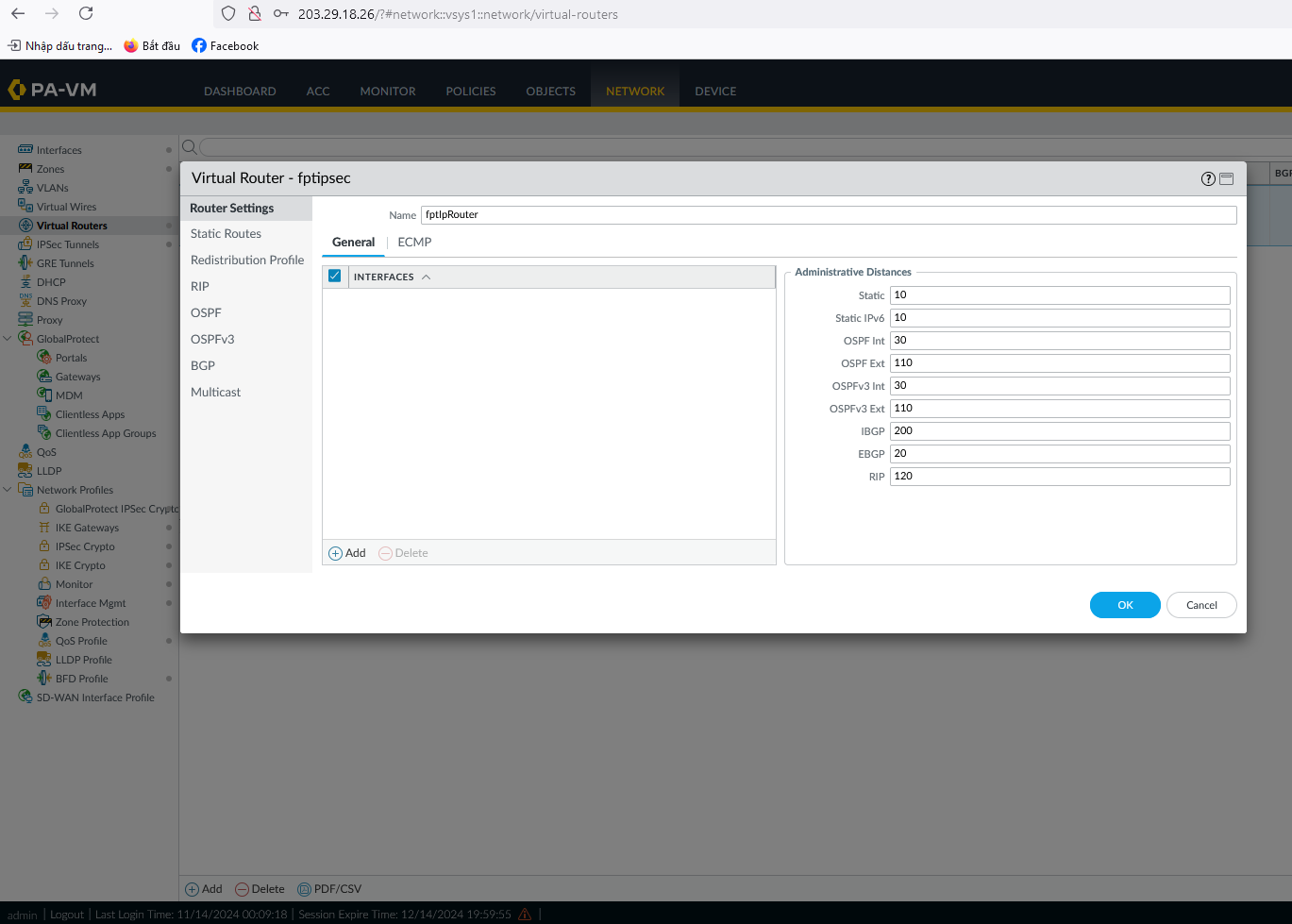

Create a Virtual Router on Palo Alto and click OK.

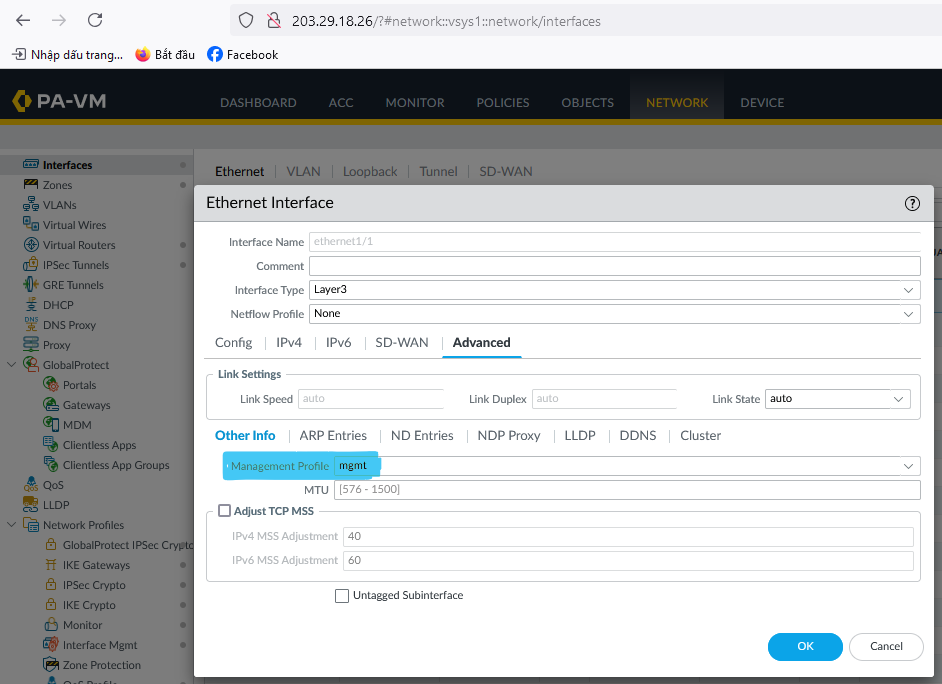

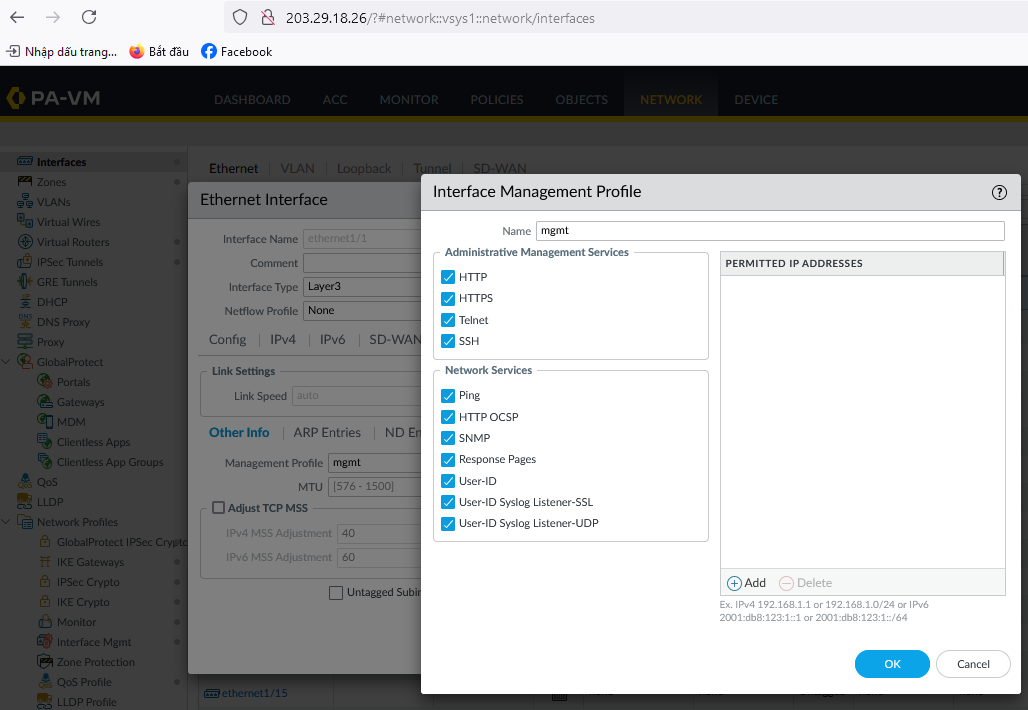

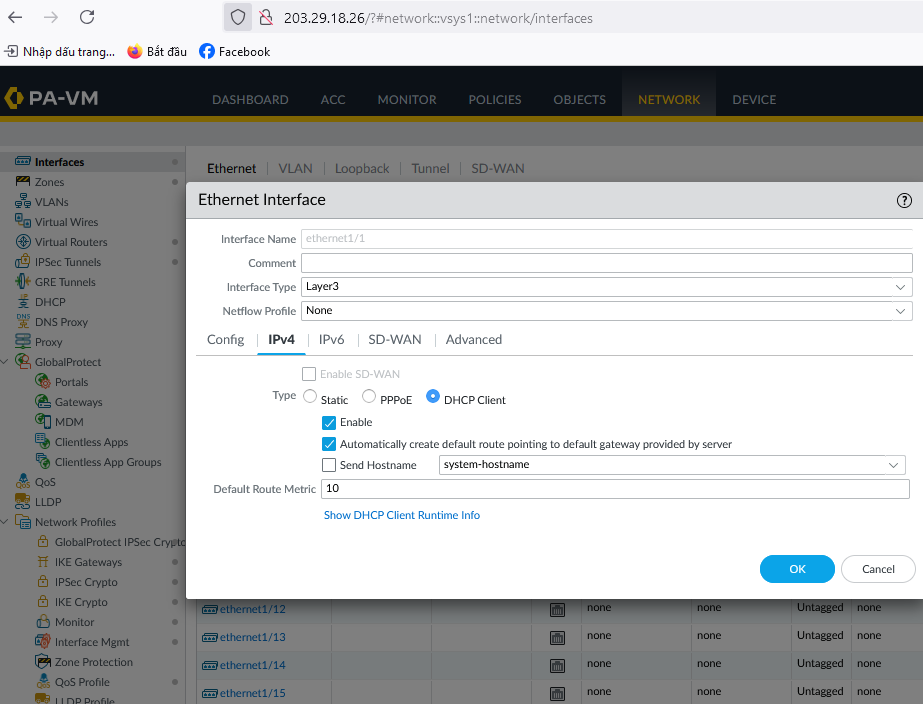

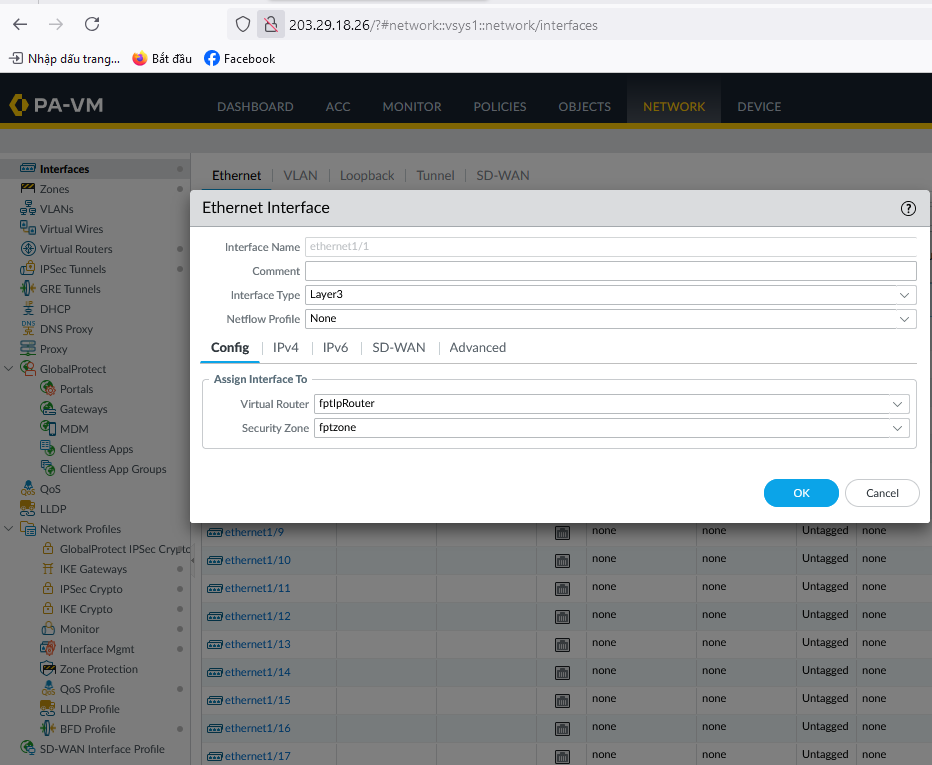

Create WAN and LAN interfaces (for example, ethernet1/1 and ethernet1/2).

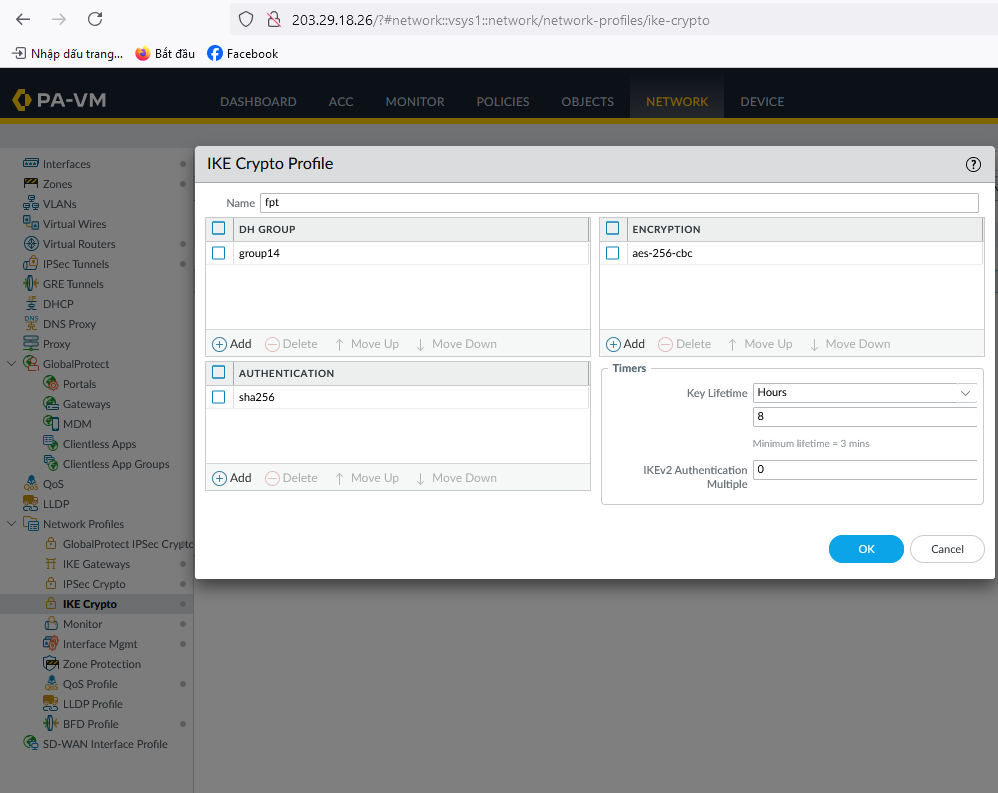

Create an IKE Crypto profile.

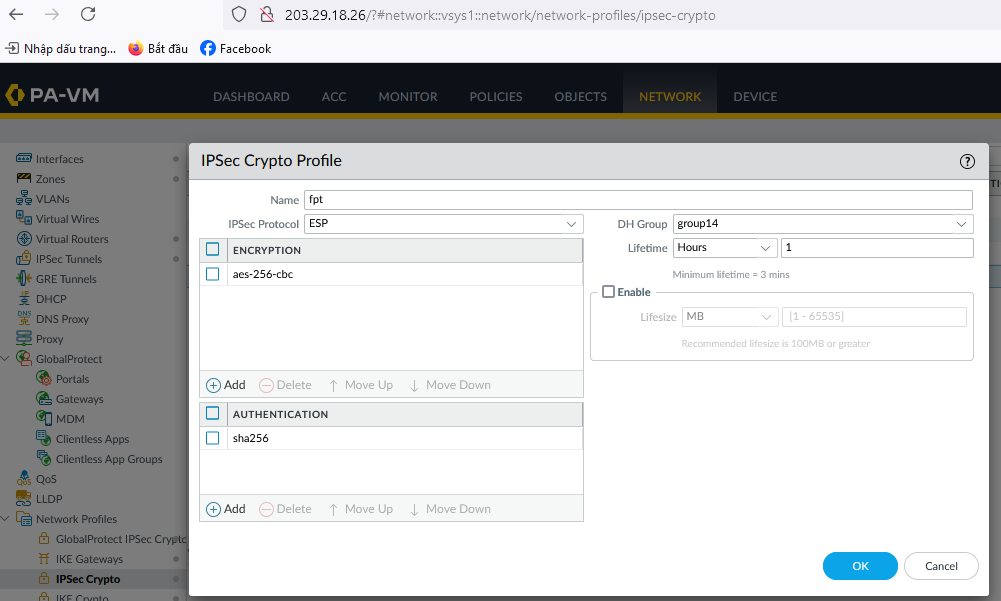

Create an IPSec Crypto profile.

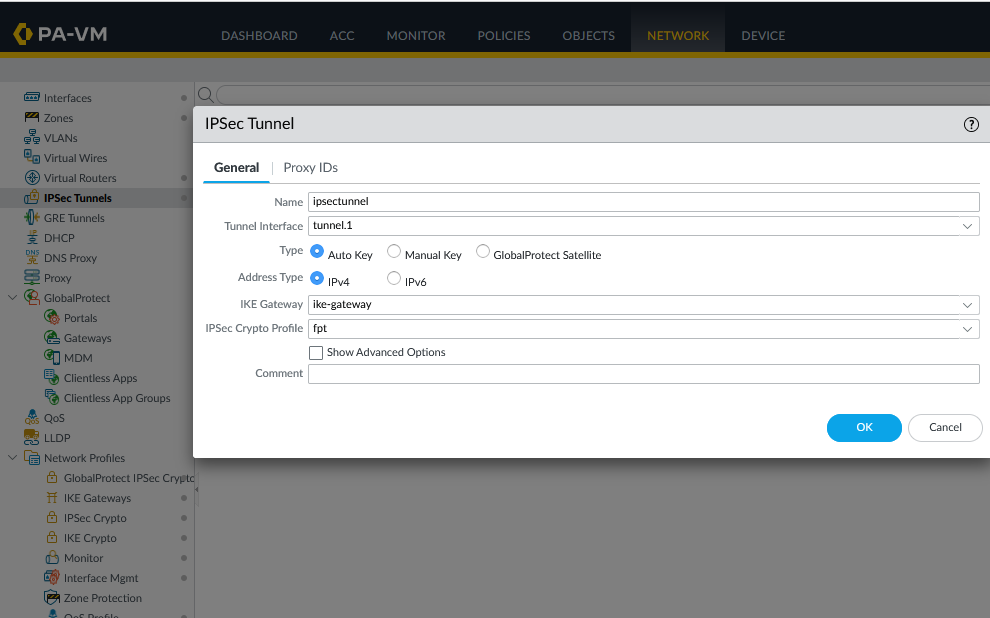

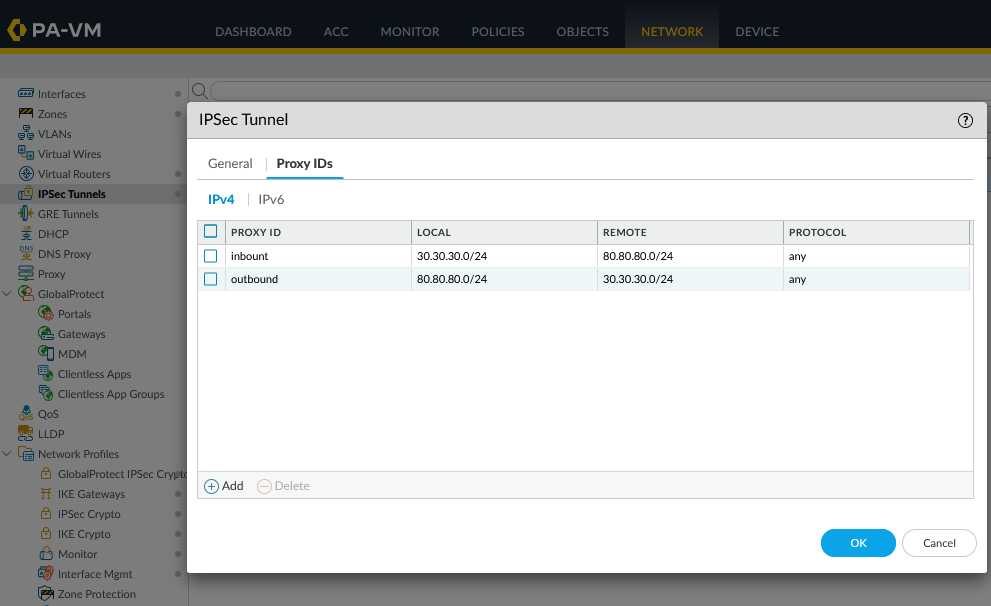

Go to IPsec Tunnels:

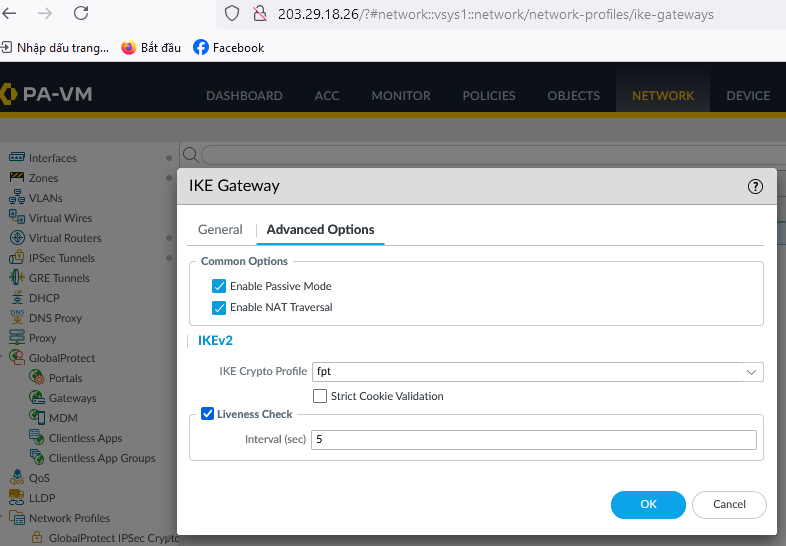

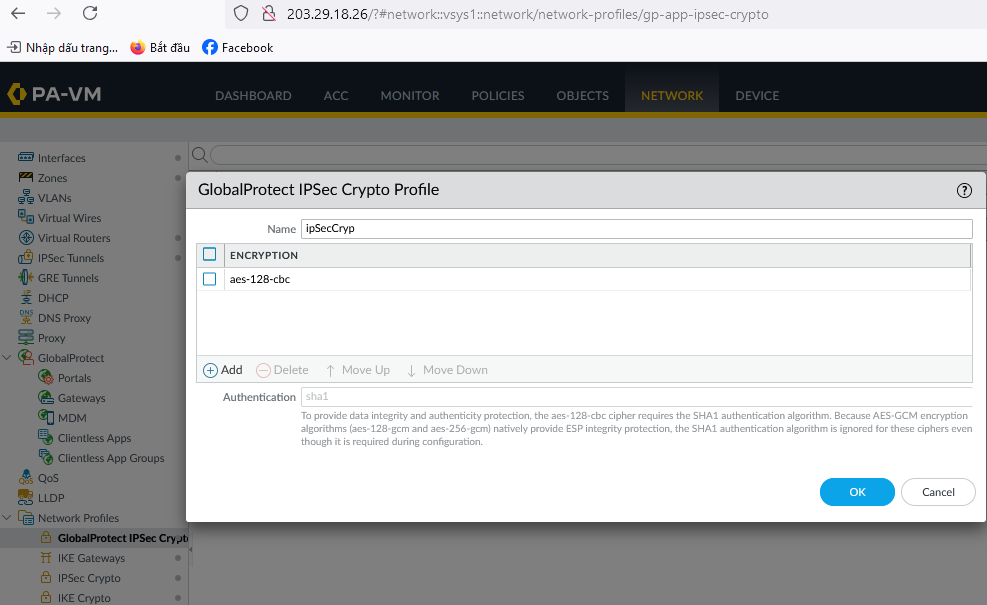

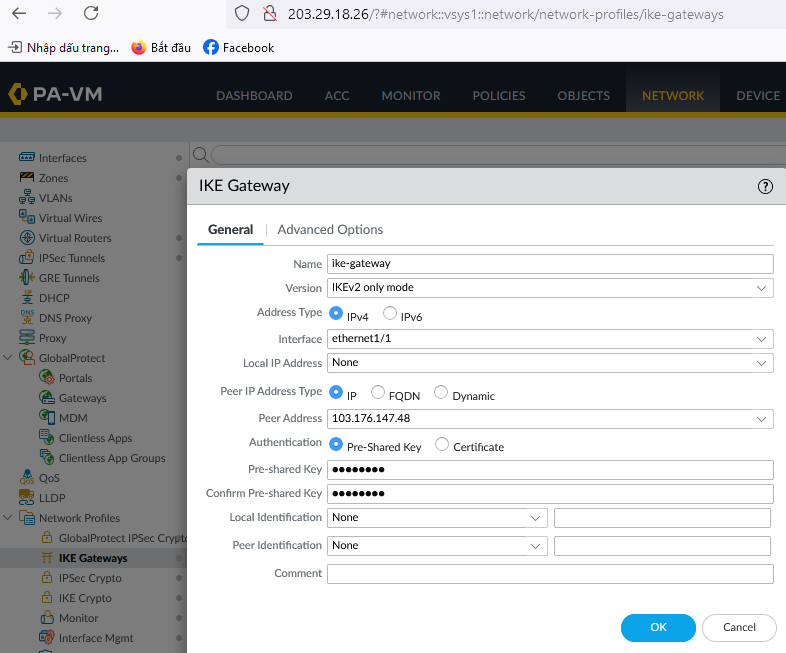

-In the General tab, enter Peer Address as the IP from FPT created in Step 1 (e.g., 103.176.147.48). -In the Advanced Options tab, fill in the required details: - Create GlobalProtect IPSec:
