Manage Proxy Host

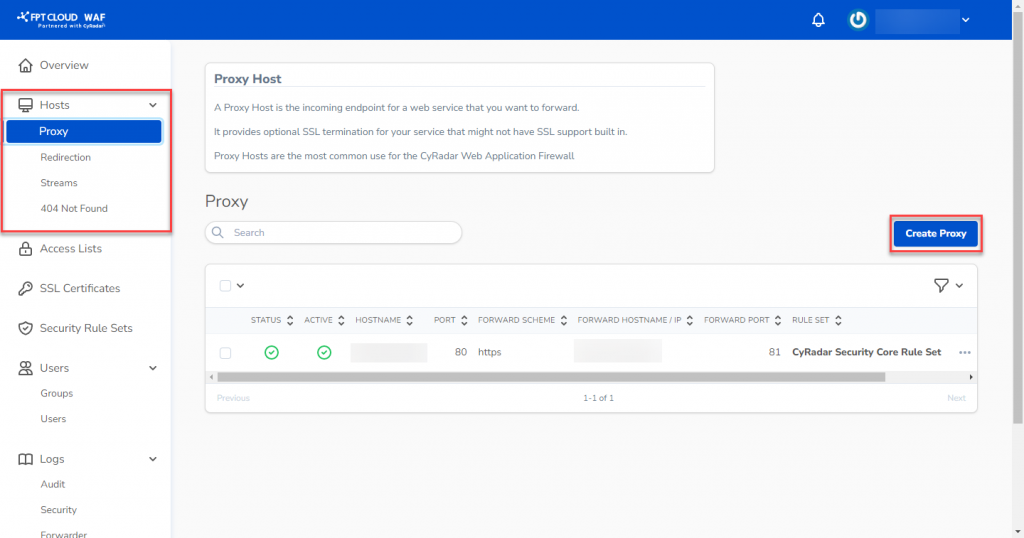

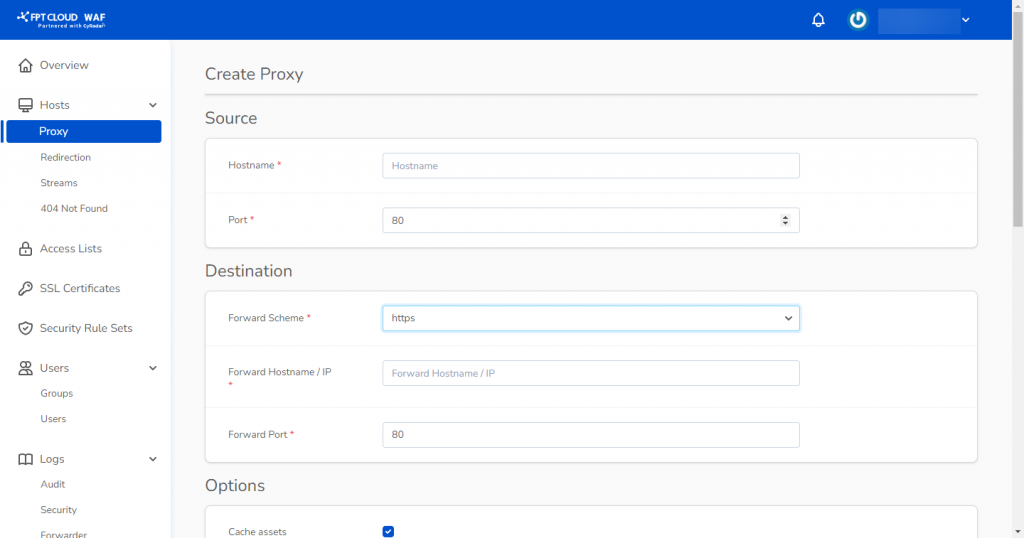

Step 1: In the WAF Dashboard , select Hosts > Proxy. ChooseCreate Proxy. Userguide FPT WAF 2022 5 Step 2: Enter the information as instructed. Userguide FPT WAF 2022 6

  • Enter Source information:
  • * **Hostname** : Enter the domain name
    • Port : Default is 80; if there is an SSL Certificate, you can choose port 443.
  • Enter Destination information:
  • * **Forward Scheme** : Choose http/https
    • Forward Hostname/IP : Enter the Public IP or Domain of the Web Server. If WAF server and Web Server are in the same subnet, you can use the IP Private.
    • Forward Port: : Enter the port used by the Web Server. Note: Forward Port is the port opened for connection on the Web Server.

Select additional features based on user needs, such as:

  • Cache Assets:
  • Block Common Exploits
  • Websockets Support

Additionally, select the following information:

  • Rule Set: By default, FPT Cloud WAF's rules set will be applied. Users can add custom rule sets on the "Add New Rule File" screen and select from there.
  • Access List: Add a new access list on the Access List screen to select and apply it to the proxy host.
  • SSL Certificate: Choose the corresponding SSL Certificate for the domain/website. The SSL Certificate needs to be created before selection; if not available, choose None. Userguide FPT WAF 2022 6

Step 3: Select Create Proxy to create the Proxy host
