Configure the OpenStack Provider

I. Initial setup & service authentication

terraform {
required_version = ">= 0.14.0"
  required_providers {
    openstack = {
      source  = "terraform-provider-openstack/openstack"
      version = "~> 1.53.0"
    }
  }
}

provider "openstack" {
  user_name   = "usera"
  tenant_name   = "project_name"
  password    = "pwd"
  auth_url    = <fptcloud identity endpoint>
  region      = "RegionOne"
}

# Create infratructures
resource "openstack_compute_instance_v2" "test-server" {
  # ...
}

Parameters	Description	Environment Variable
auth_url	URL of Identity Service	OS_AUTH_URL
region	Region of FPT cloud	OS_REGION_NAME
user_name	Username provided by FPT Cloud	OS_USERNAME
user_id		OS_USER_ID
user_domain_name		OS_USER_DOMAIN_NAME
user_domain_id		OS_USER_DOMAIN_ID
tenant_id		OS_PROJECT_ID
tenant_name	VPC name provided by FPTCloud	OS_PROJECT_NAME
project_domain_name		OS_PROJECT_DOMAIN_NAME
project_domain_id		OS_PROJECT_DOMAIN_ID
domain_name		OS_DOMAIN_NAME
domain_id		OS_DOMAIN_ID
insecure		OS_INSECURE
interface		OS_INTERFACE
...

• Other optional configurations can be found at Configuration Reference

II. Core components

A. Networking

1. Router

Copy   resource "openstack_networking_router_v2" "router_1" {
        name                = "my_router"
        admin_state_up      = true
        external_network_id = "f67f0d72-0ddf-11e4-9d95-e1f29f417e2f"
    }

Parameters	Description	Required
region	Region of vRouter
name	Name of vRouter
external_network_id	ID of external gateway, a router with an external gateway is required if any compute instances or load balancers will be using floating IPs.
...

2. Network

Copy    resource "openstack_networking_network_v2" "network_1" {
      name           = "network_1"
      admin_state_up = "true"
    }

    resource "openstack_networking_subnet_v2" "subnet_1" {
      name       = "subnet_1"
      network_id = openstack_networking_network_v2.network_1.id
      cidr       = "192.168.199.0/24"
      ip_version = 4
    }

    resource "openstack_compute_secgroup_v2" "secgroup_1" {
      name        = "secgroup_1"
      description = "a security group"

      rule {
        from_port   = 22
        to_port     = 22
        ip_protocol = "tcp"
        cidr        = "0.0.0.0/0"
      }
    }

    resource "openstack_networking_port_v2" "port_1" {
      name               = "port_1"
      network_id         = openstack_networking_network_v2.network_1.id
      admin_state_up     = "true"
      security_group_ids = [openstack_compute_secgroup_v2.secgroup_1.id]

      fixed_ip {
        subnet_id  = openstack_networking_subnet_v2.subnet_1.id
        ip_address = "192.168.199.10"
      }
    }

    resource "openstack_compute_instance_v2" "instance_1" {
      name            = "instance_1"
      security_groups = [openstack_compute_secgroup_v2.secgroup_1.name]

      network {
        port = openstack_networking_port_v2.port_1.id
      }
    }

Parameters	Description	Type	Default	Required
name	Name of network.	string		Yes
shared	Specifies whether the network resource can be accessed by any tenant or not.	bool	false	No
...

3. Subnet

Copy   resource "openstack_networking_network_v2" "network_1" {
      name           = "tf_test_network"
      admin_state_up = "true"
    }

    resource "openstack_networking_subnet_v2" "subnet_1" {
      network_id = openstack_networking_network_v2.network_1.id
      cidr       = "192.168.199.0/24"
    }

Parameters	Description	Type	Default	Required
network_id	ID of network from previous step.	string		Yes
cidr	CIDR representing IP range for this subnet, based on IP version.	string		Yes
ip_version	IP version of subnet.	int	4	No
enable_dhcp	Enable DHCP for subnet.	bool	true	No
allocation_pools	IP pools of DHCP .	list		No
gateway_ip	Default IP Gateway.	string		No
host_routes	List of default static host routes.	list		No
dns_nameservers	List of DNS server of subnet.	list		No
prefixlen	Prefix length of subnet.	int		No
...

4. Port

Copy    resource "openstack_networking_network_v2" "network_1" {
      name           = "network_1"
      admin_state_up = "true"
    }

    resource "openstack_networking_port_v2" "port_1" {
      name           = "port_1"
      network_id     = openstack_networking_network_v2.network_1.id
      admin_state_up = "true"
    }

Parameters	Description	Type	Default	Required
network_id	ID of network from previous step.	string		Yes
mac_address	Fix MAC address for port.	string		No
name	Port name.	string		No
fixed_ips	Fixed IP for port.	list		No
allowed_address_pairs	An IP/MAC Address pair of additional IP addresses that can be active on this port.	list		No
security_group_ids	A list of security group IDs to apply to the port.	list		No
...

5. FloatingIP

Copy    resource "openstack_networking_floatingip_v2" "floatip_1" {
      pool = "provider-net4"
    }

Parameters	Description	Type	Default	Required
pool	The name of the pool from which to obtain the floating IP. Changing this creates a new floating IP. E.g. provider-net4	string		Yes
port_id	ID of an existing port with at least one IP address to associate with this floating IP.	string		No
fixed_ip	Fixed IP of the port to associate with this floating IP.	string		No
description	Human-readable description for the floating IP.	string		No
...

6. Security Group

Copy    resource "openstack_networking_secgroup_v2" "secgroup_1" {
      name        = "secgroup_1"
      description = "My neutron security group"
    }

Parameters	Description	Type	Default	Required
name	A unique name for the security group.	string		Yes
description	Human-readable description for the security group.	string		No
tenant_id	The owner of the security group. Required if admin wants to create a port for another tenant.	string		No
...

7. Security Group Rule

Copy    resource "openstack_networking_secgroup_v2" "secgroup_1" {
      name        = "secgroup_1"
      description = "My neutron security group"
    }

    resource "openstack_networking_secgroup_rule_v2" "secgroup_rule_1" {
      direction         = "ingress"
      ethertype         = "IPv4"
      protocol          = "tcp"
      port_range_min    = 22
      port_range_max    = 22
      remote_ip_prefix  = "0.0.0.0/0"
      security_group_id = openstack_networking_secgroup_v2.secgroup_1.id
    }

Parameters	Description	Type	Default	Required
security_group_id	The security group id the rule should belong to, the value needs to be an Openstack ID of a security group in the same tenant.	string		Yes
direction	ingress or egress.	string		Yes
ethertype	Layer 3 protocol type (IPv4 , IPv6).	string		Yes
protocol	Layer 4 protocol type (tcp, udp, icmp, ...).	string		Yes
remote_ip_prefix	remote CIDR	string		No
remote_group_id	The remote group id, the value needs to be an Openstack ID of a security group in the same tenant.	string		No
port_range_min		int		No
port_range_max		int		No
description	A description of the rule.	string		No
...

B. Storage

1. Volume

Copy    resource "openstack_blockstorage_volume_v3" "volume_1" {
      region      = "RegionOne"
      name        = "volume_1"
      description = "first test volume"
      volume_type = "PremiumSSD-2000_floor5"
      availability_zone = "floor5"
      size        = 40
    }

Parameters	Description	Type	Default	Required
size	The size of the volume to create (in gigabytes).	int		Yes
name	A unique name for the volume.	string		No
description	A description of the volume.	string		No
availability_zone	The availability zone for the volume.	string		No
image_id	The image ID from which to create the volume.	string		No
volume_type	The type of volume to create.	string		No
...

C. Compute

1. Instance

Copyresource "openstack_blockstorage_volume_v3" "myvol" {
  name = "myvol"
  size = 40
  volume_type = "PremiumSSD-2000_floor5"
  availability_zone = "floor5"
}

resource "openstack_compute_instance_v2" "myinstance" {
  name            = "myinstance"
  image_name        = "UBUNTU-20.04-10072023"
  flavor_name       = "Small.2"
  key_pair        = "my_key_pair_name"
  security_groups = ["default"]
  availability_zone = "floor5"

  network {
    name = "my_network"
  }
}

resource "openstack_compute_volume_attach_v2" "attached" {
  instance_id = openstack_compute_instance_v2.myinstance.id
  volume_id   = openstack_blockstorage_volume_v3.myvol.id
}

Parameters	Description	Type	Default	Required
name	A unique name for the resource.	string		Yes
flavor_name	The name of the desired flavor for the server.	string		Yes
image_name	The name of the desired image for the server.	string		Yes
key_pair	The name of a key pair to put on the server.	string		No
user_data	cloud-init script, the user data to provide when launching the instance.	string		No
metadata		map		No
security_groups	An array of one or more security group names to associate with the server.	list		No
network	An array of one or more networks to attach to the instance.	string		No
block_device	Configuration of block devices.	list		No
availability_zone	The availability zone in which to create the server.	string		No
...

III. Example

This section focus on show up the actual use case of FPT Cloud Iac by using terraform to deploy new Web Application on FPT Cloud, the step described as the following:

• Setting up terraform
• Create new project directory include main.tf file with the following content:

Copyterraform {
required_version = ">= 0.14.0"
  required_providers {
    openstack = {
      source  = "terraform-provider-openstack/openstack"
      version = "~> 1.53.0"
    }
  }
}

# Configure the OpenStack Provider
provider "openstack" {
  user_name   = <user-name>
  tenant_id = <project-uuid>
  user_domain_name = <domain-name>
  password    = <password>
  auth_url    = <fptcloud identity endpoint>
  region      = "RegionOne"
}

# Network
data "openstack_networking_network_v2" "provider_net" {
  name = "provider-net5"
}

resource "openstack_networking_router_v2" "webapp_router" {
  name                = "webapp_router"
  admin_state_up      = true
  external_network_id = data.openstack_networking_network_v2.provider_net.id
}

resource "openstack_networking_network_v2" "webapp_network" {
  name           = "webapp_network"
  admin_state_up = true
}

resource "openstack_networking_subnet_v2" "webapp_subnet" {
  name            = "webapp_subnet"
  network_id      = openstack_networking_network_v2.webapp_network.id
  cidr            = "10.0.0.0/24"
  ip_version      = 4
  dns_nameservers = ["1.1.1.1"]
}

resource "openstack_networking_router_interface_v2" "webapp_router_interface" {
  router_id = openstack_networking_router_v2.webapp_router.id
  subnet_id = openstack_networking_subnet_v2.webapp_subnet.id
}

resource "openstack_compute_secgroup_v2" "webapp_secgroup" {
  name        = "webapp_secgroup"
  description = "Allow web traffic"
  rule {
    from_port   = 80
    to_port     = 80
    ip_protocol = "tcp"
    cidr        = "0.0.0.0/0"
  }
  rule {
    from_port   = 22
    to_port     = 22
    ip_protocol = "tcp"
    cidr        = "0.0.0.0/0"
  }
}

resource "openstack_compute_floatingip_v2" "webapp_floatingip" {
  pool = "provider-net5"
}

# Volume
data "openstack_images_image_v2" "ubuntu_image" {
  name = "UBUNTU-22.04-10072023"
}

resource "openstack_blockstorage_volume_v3" "webapp_volume" {
  name        = "webapp_volume"
  description = "Volume for webapp"
  size        = 40
  volume_type        = "Premium-SSD_floor5"
  image_id    = data.openstack_images_image_v2.ubuntu_image.id
}

# Instance
data "openstack_compute_keypair_v2" "webapp_key" {
  name = "webapp_key"
}

data "openstack_compute_flavor_v2" "s2_medium_1" {
  name = "2C2G"
}

/* Userdata
#cloud-config
package_update: true
chpasswd:
  list: |    root:<password-vm>
  packages:
  - nginx  - gitruncmd:
  - systemctl enable nginx
  - systemctl start nginx

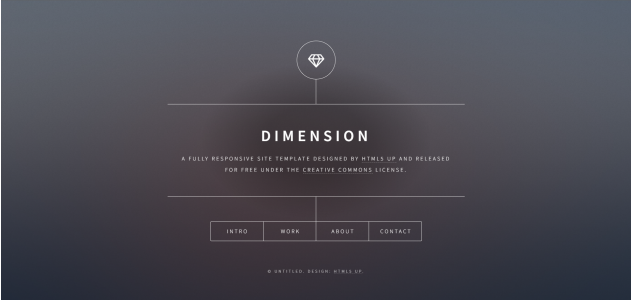

  - git clone https://github.com/cloudacademy/static-website-example.git
  - cp -r ./static-website-example/* /var/www/html/
  - rm -r ./static-website-example*/

resource "openstack_compute_instance_v2" "webapp_instance" {
  name            = "webapp_instance"
  image_id        = data.openstack_images_image_v2.ubuntu_image.id
  flavor_id       = data.openstack_compute_flavor_v2.s2_medium_1.id
  key_pair        = data.openstack_compute_keypair_v2.webapp_key.name
  security_groups = [openstack_compute_secgroup_v2.webapp_secgroup.name]
  availability_zone = "floor5"

  user_data = "#cloud-config\npackage_update: true\nchpasswd:\n  list: |\n    root:Welcome***123\npackages:\n  - nginx\n  - git\nruncmd:\n  - systemctl enable nginx\n  - systemctl start nginx\n  - git clone https://github.com/cloudacademy/static-website-example.git\n  - cp -r ./static-website-example/* /var/www/html/\n  - rm -r ./static-website-example"
  network {
    name = openstack_networking_network_v2.webapp_network.name
  }
  block_device {
    uuid                  = openstack_blockstorage_volume_v3.webapp_volume.id
    source_type           = "volume"
    destination_type      = "volume"
    boot_index            = 0
    delete_on_termination = true
  }
}

resource "openstack_compute_floatingip_associate_v2" "webapp_floatingip_associate" {
  floating_ip = openstack_compute_floatingip_v2.webapp_floatingip.address
  instance_id = openstack_compute_instance_v2.webapp_instance.id
}

output "webapp_public_ip" {
  value       = openstack_compute_floatingip_v2.webapp_floatingip.address
  description = "Web Application URL"
}

output "webapp_private_ip" {
  value       = openstack_compute_instance_v2.webapp_instance.access_ip_v4
  description = "Web Application Private IP"
}

• Deploying application

Copyterraform init
terraform apply --auto-approve

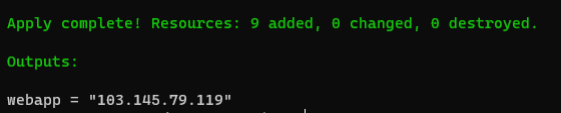

• The result of terraform CLI:
• Acces the floating IP and enjoy the result of webapp
• Cleaning-up the whole resources created by IaC stack:

Copyterraform destroy --auto-approve

References

• Terraform OpenStack Provider
